EcoFlow TITAN 5000 Series: Standard, Classic, & Plus Models
Published:
EcoFlow's TITAN Series introduces a practical, highly expandable lineup for emergency home backup and off-grid power: the TITAN 5000, TITAN 5000 Classic, and TITAN 5000 Plus. While all three models leverage the same expandable 5kWh LFP battery platform (scalable up to 30.1kWh), they differ when it comes to raw AC inverter output, solar input capacity, and 120V vs. 240V split-phase support.
My opinions, not brand-directed. Uses affiliate links. Brands send some review items. See details
The EcoFlow TITAN Series models are not yet available for purchase. This page will be updated as additional information becomes available.
Detailed Comparison
Here’s a side‑by‑side breakdown of the TITAN Series models:
| Model | TITAN 5000 Classic | TITAN 5000 | TITAN 5000 Plus |
|---|---|---|---|
| Price | TBD | TBD | TBD |
| Model | EF-TT-5C-G1 | EF-TT-5-G1 | EF-TT-5P-G1 |
| Capacity | 5,017.6Wh | 5,017.6Wh | 5,017.6Wh |
| Expandable | 30.1kWh | 30.1kWh | 30.1kWh |
| AC Output Total | 4,000W | 7,200W | 10,000W |
| Bypass Mode | Yes | Yes | Yes |
| X-Boost | 5,000W | No | No |
| Split-Phase | No | Yes | Yes |
| Standard Outlets (120V) | 3× NEMA 5-20R 20A each | 3× NEMA 5-20R 20A each | 3× NEMA 5-20R 20A each |
| Heavy-Duty Outlet | 1x NEMA TT-30R 120V~30A | 1x NEMA L14-30R 120/240V~30A | 1x NEMA L14-50R 120/240V~41.7A |
| Charging Wall Outlet | 100-120V~15A, 1800W | 100-120V~15A, 1800W | 100-120V~15A, 1800W |
| Charging AC In/Out Port | 120V~33.3A, 4,000W | 120/240V~30A, 7,200W | 120/240V~41.7A, 7,660W |
| Solar Input 1 | 30-250V⎓16A, 3,200W | 30-250V⎓16A, 3,200W | 40-450V⎓16A, 4,000W |
| Solar Input 2 | -- | -- | 40-450V⎓16A, 4,000W |
| USB A | 18W × 1 | 18W × 1 | None |
| USB C | 60W × 1 | 60W × 1 | None |
Accessories
Official accessories designed to integrate, adapt, and expand your TITAN setup:
TITAN Battery 5kWhConnect up to 5 to increase the capacity of TITAN- Solar to HP500 Charging CableConnect solar panels

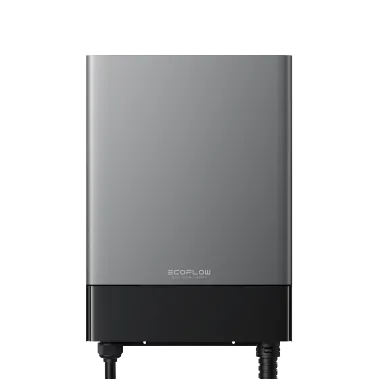

Smart Home Panel 10 (120V)Integrates with circuit panels for automated home backup- Smart Home Panel 10 (240V)Integrates with circuit panels for automated home backup

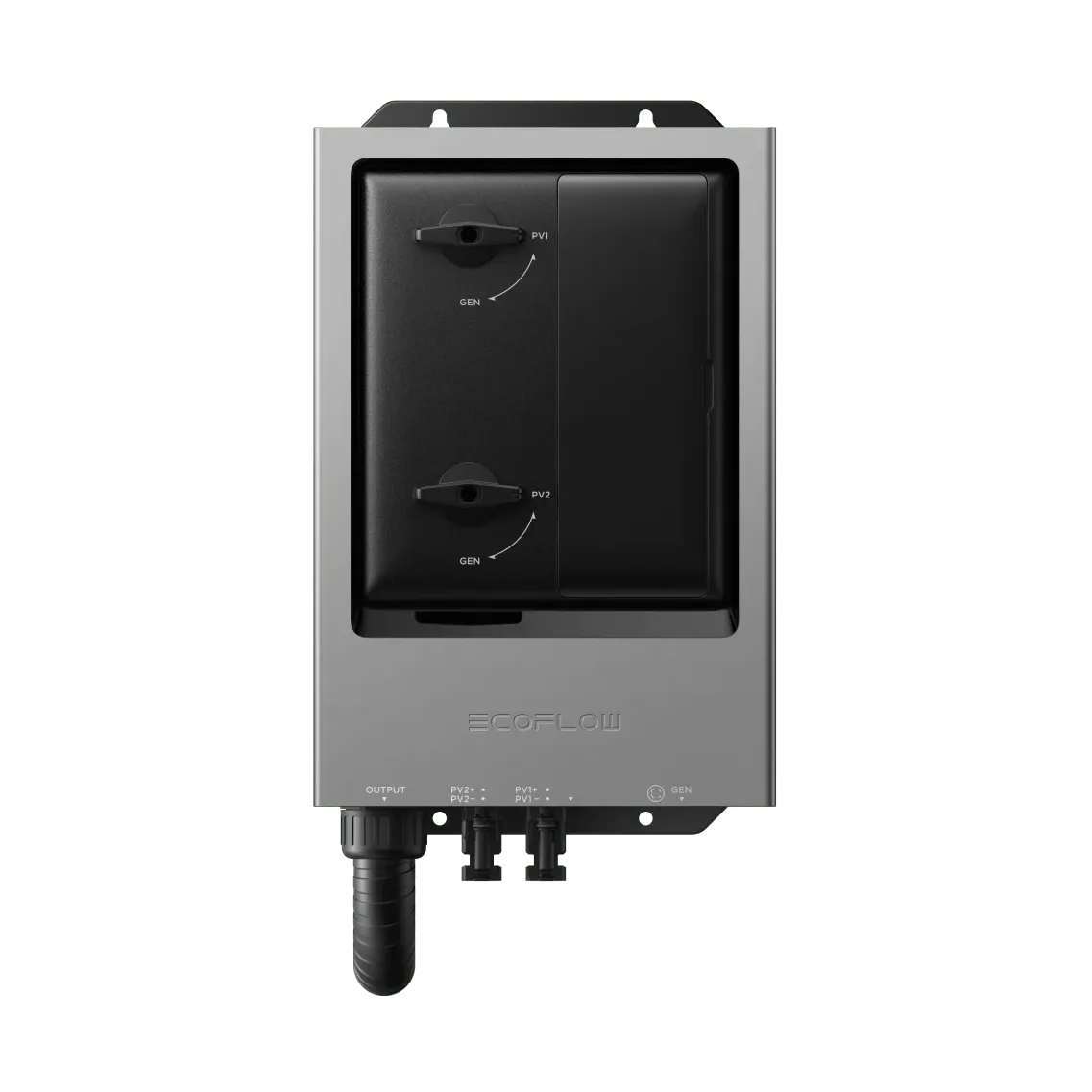

FlowMaster Generator RectifierConverts generator AC into stable DC power

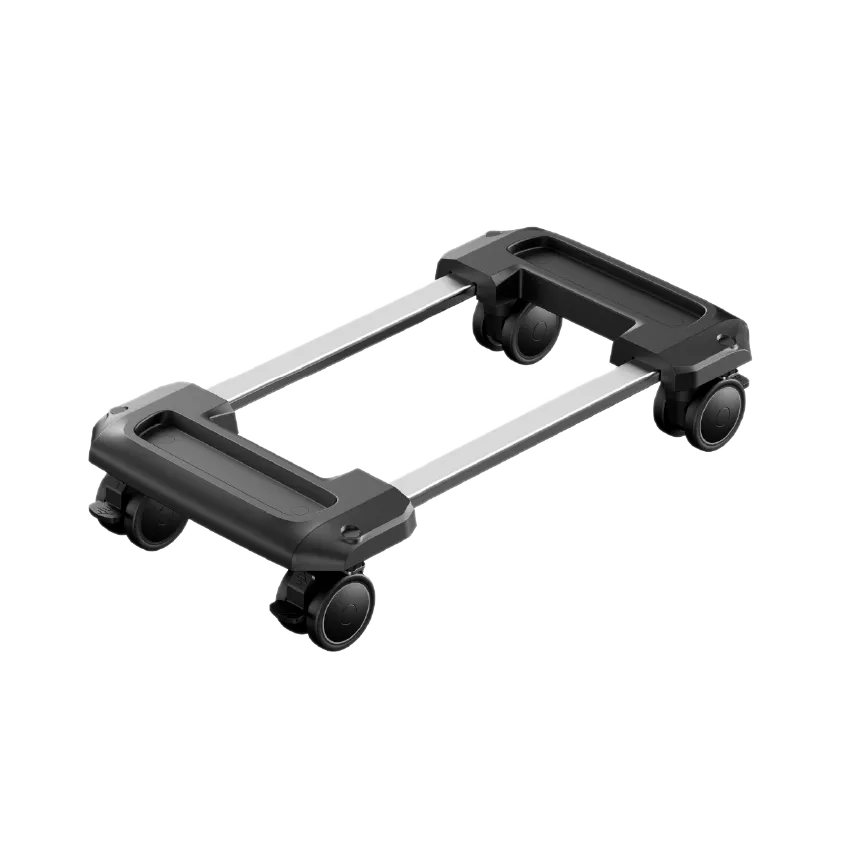

Portable Stand (TITAN Series)Support and transport TITAN and batteries with ease

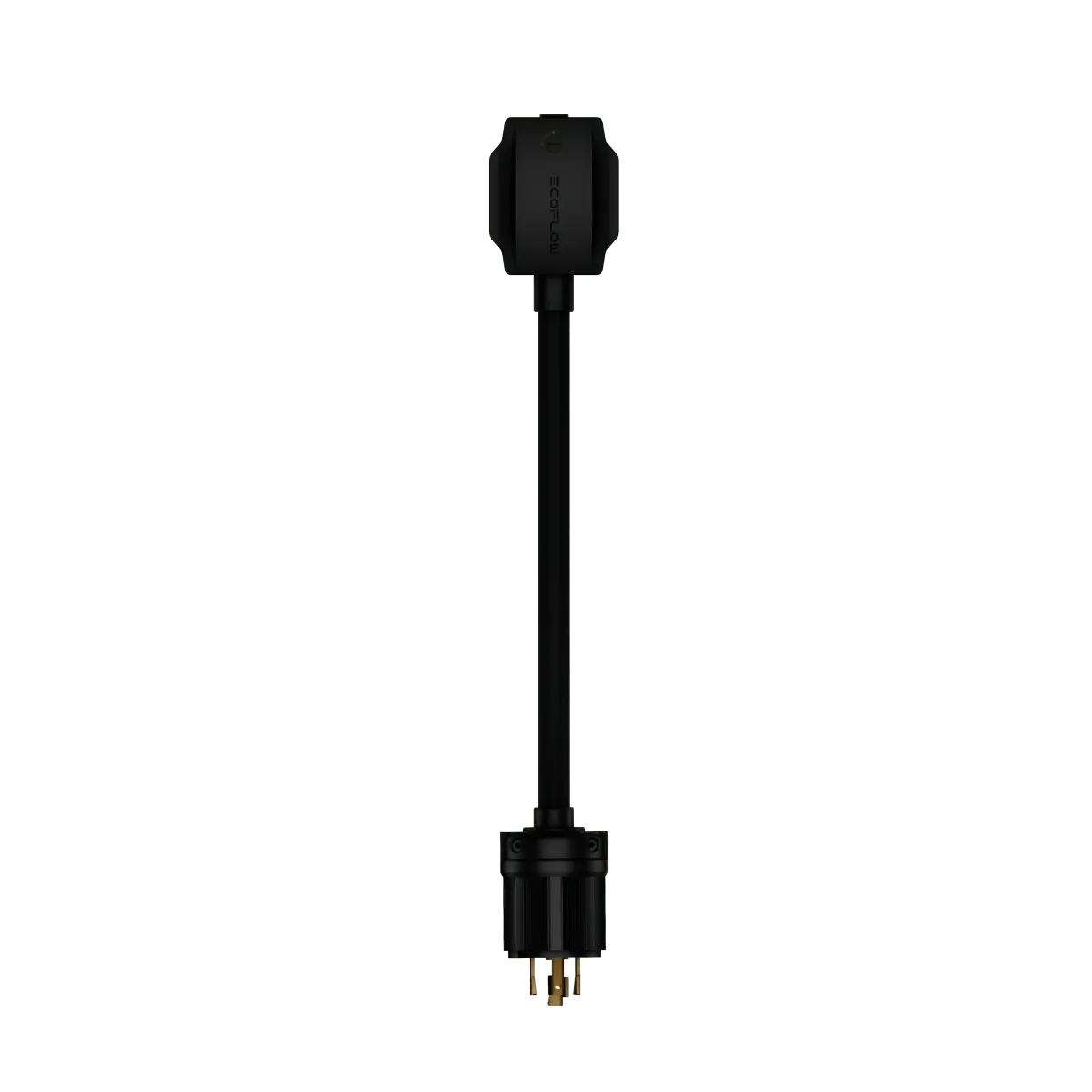

AC Generator Charging AdapterCharge using generators with a NEMA L14-30R port

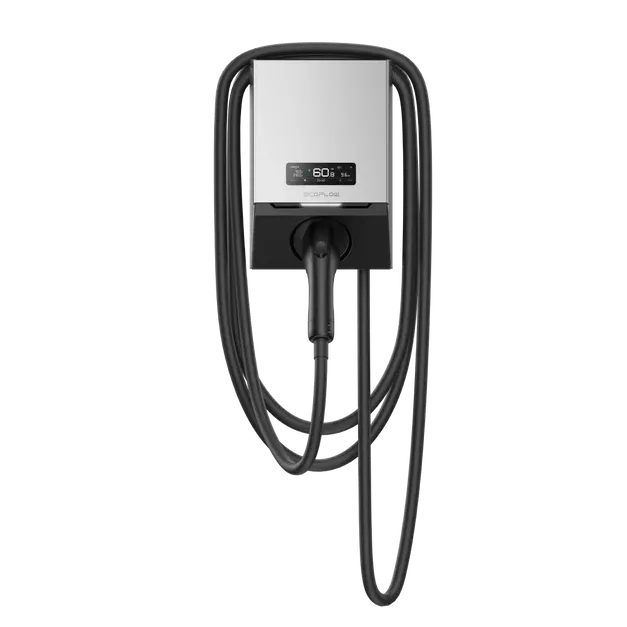

PowerPulse EV Charger (9.6kW)Enables EV charging integration
Additional accessories may become available. More info coming soon.
Summary
EcoFlow's TITAN Series expands the brand's home energy lineup, filling the space between the portable Delta Pro series and the heavy-duty Delta Pro Ultra ecosystem. While all three models share the same 5kWh battery core (expandable to 30.1kWh), the series gives buyers distinct choices in output and charging capability.
Official pricing and release dates are still unannounced, but speculation and official teasers suggest EcoFlow is targeting serious whole-home backup performance.
