The Ultimate Guide to BLUETTI Power Systems: For Vanlife, RVs & Overlanding

Updated:

BLUETTI power systems are a strong choice for vanlife, RVs, and overlanding, offering reliable off‑grid power without the complexity of a full DIY electrical build. This guide covers the best BLUETTI power stations, alternator chargers, solar options, and accessories, with clear recommendations for setups ranging from budget‑friendly to high‑capacity off‑grid builds.

My opinions, not brand-directed. Uses affiliate links. Brands send some review items. See details

Power Stations

BLUETTI power stations offer a modern alternative to DIY electrical systems, reducing installation time and overall cost. These are the four best BLUETTI models to consider for vanlife, RVs, and off‑grid travel. My top two picks are the Apex 200 and the RV5.

  • BLUETTI Apex 200 vanlife system diagram

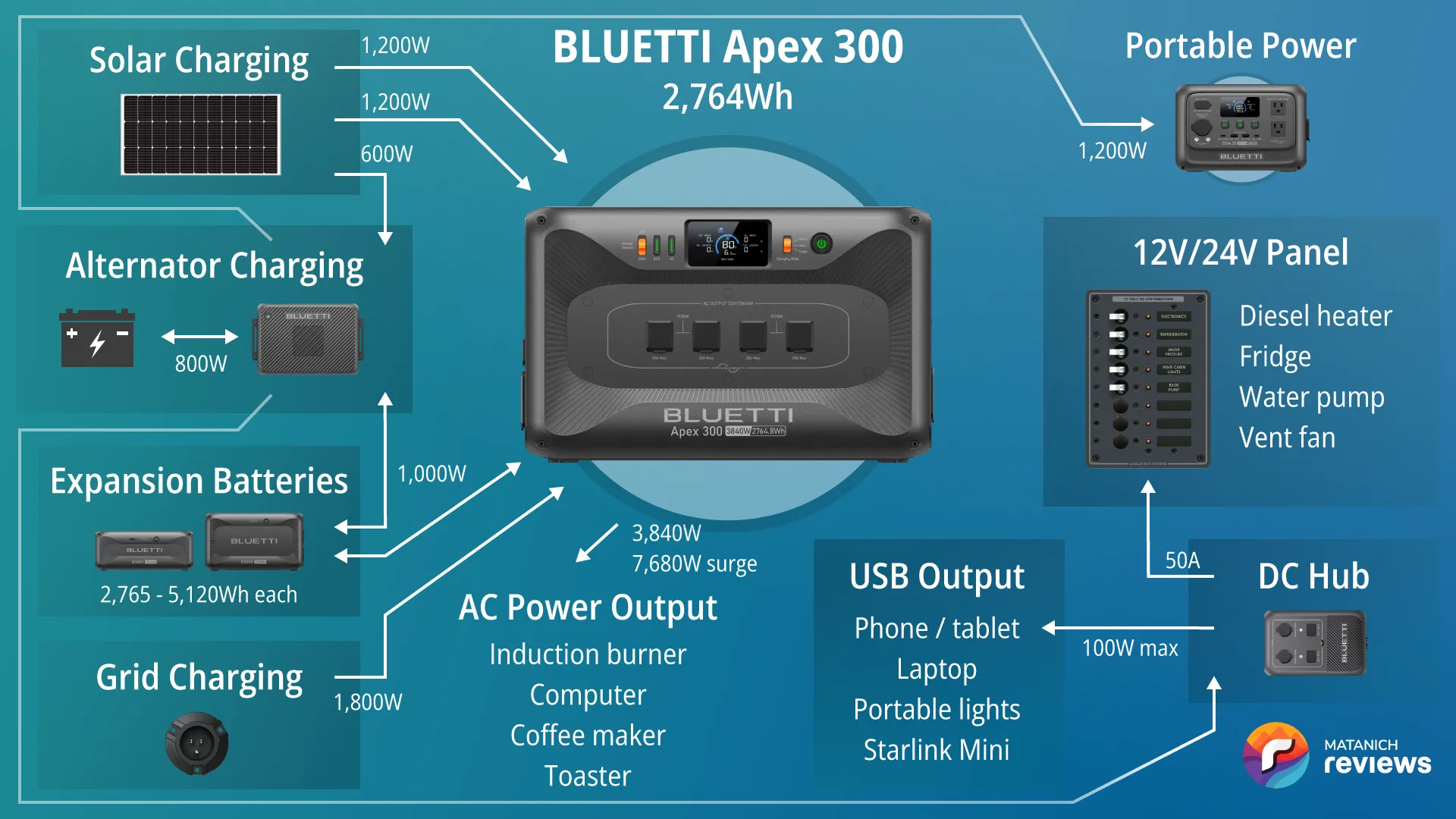

  • BLUETTI Apex 300 vanlife system diagram

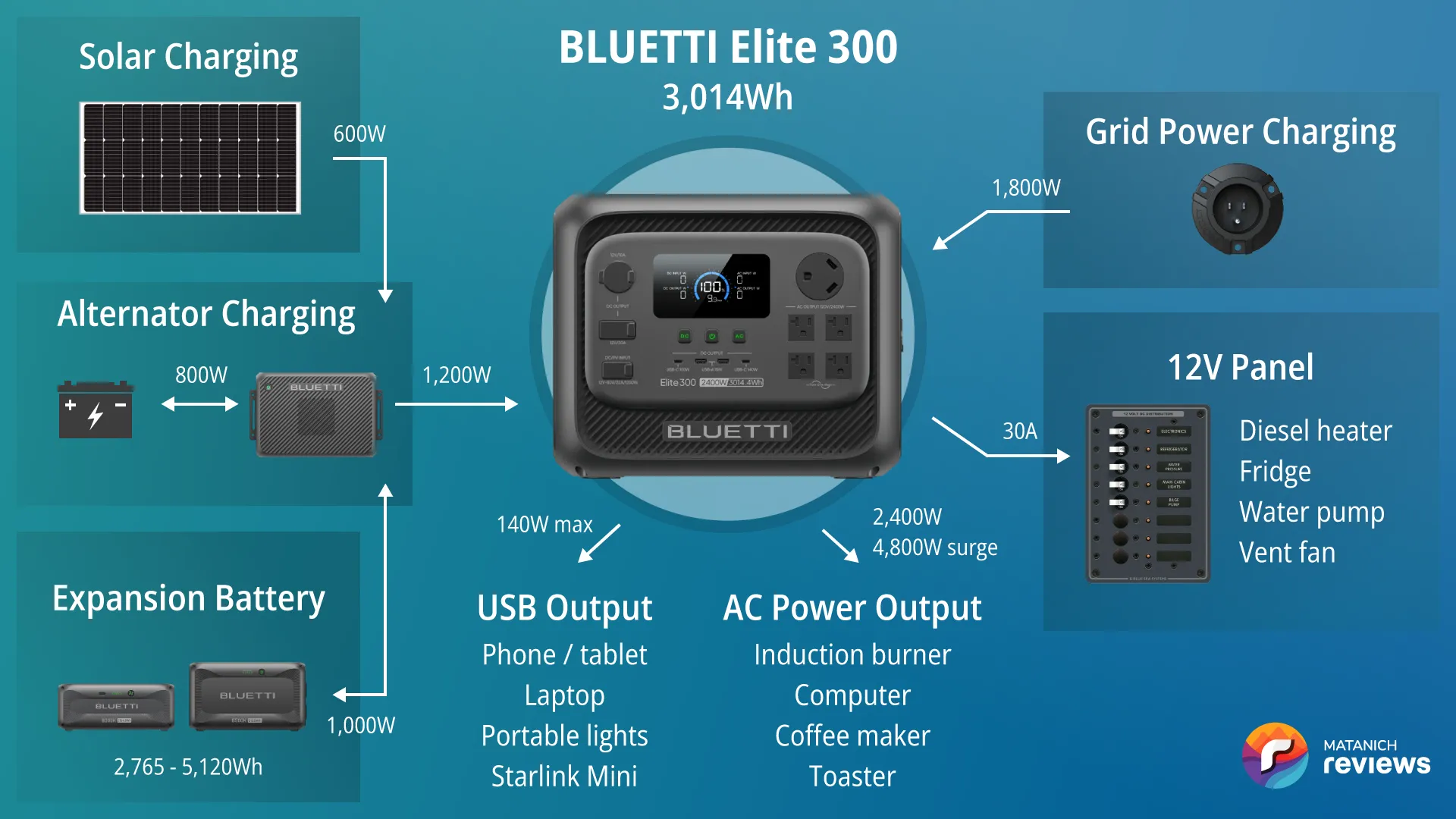

  • BLUETTI Elite 300 vanlife system diagram

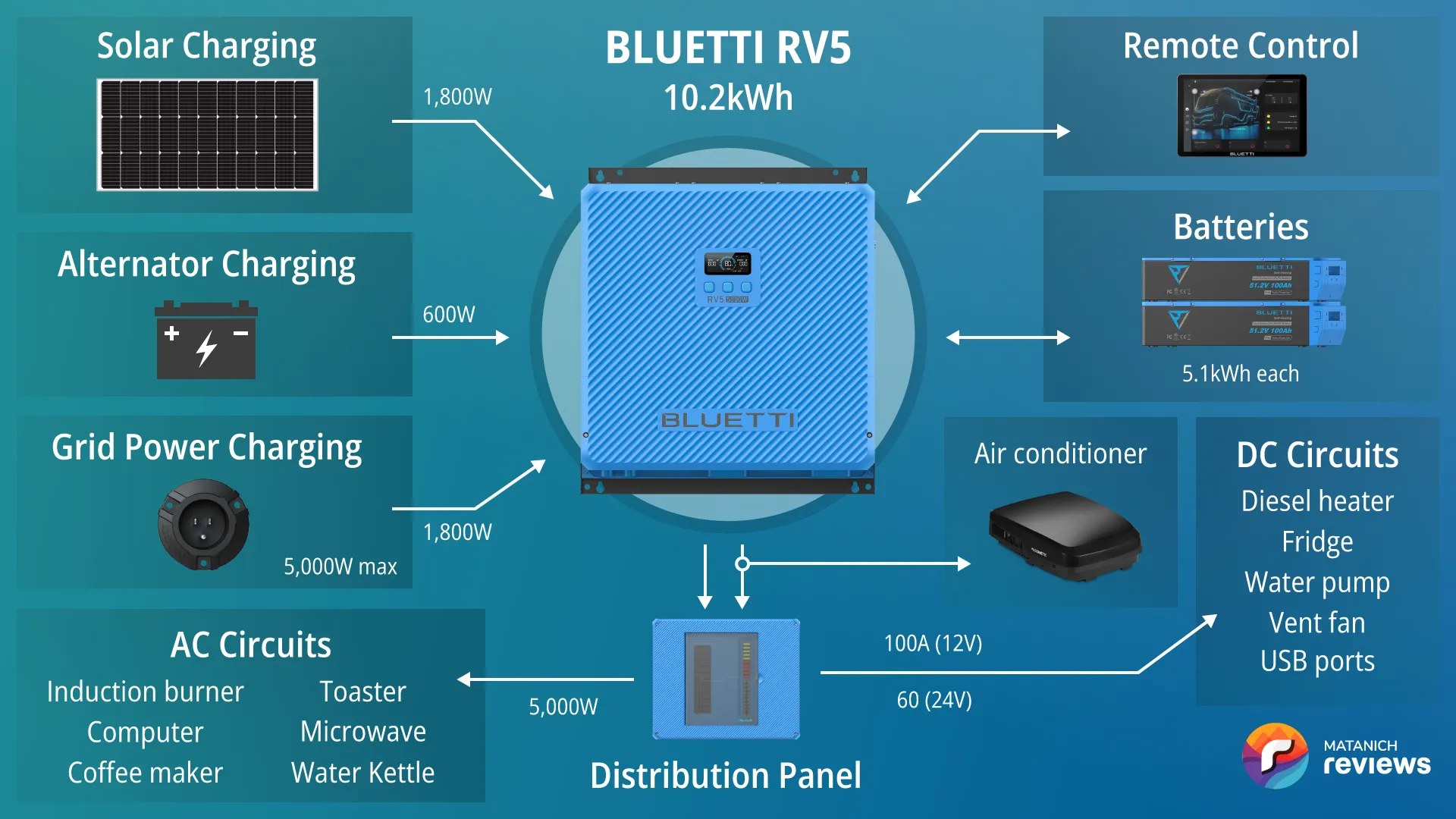

  • BLUETTI RV5 vanlife system diagram
5% Off BLUETTI Discount Code
TYGEARLABSee details
Use code TYGEARLAB at BLUETTI for an extra 5% off!

Top Models Comparison

A side‑by‑side comparison of the top BLUETTI picks, sorted by battery capacity:

ModelApex 200Apex 300Elite 300RV5

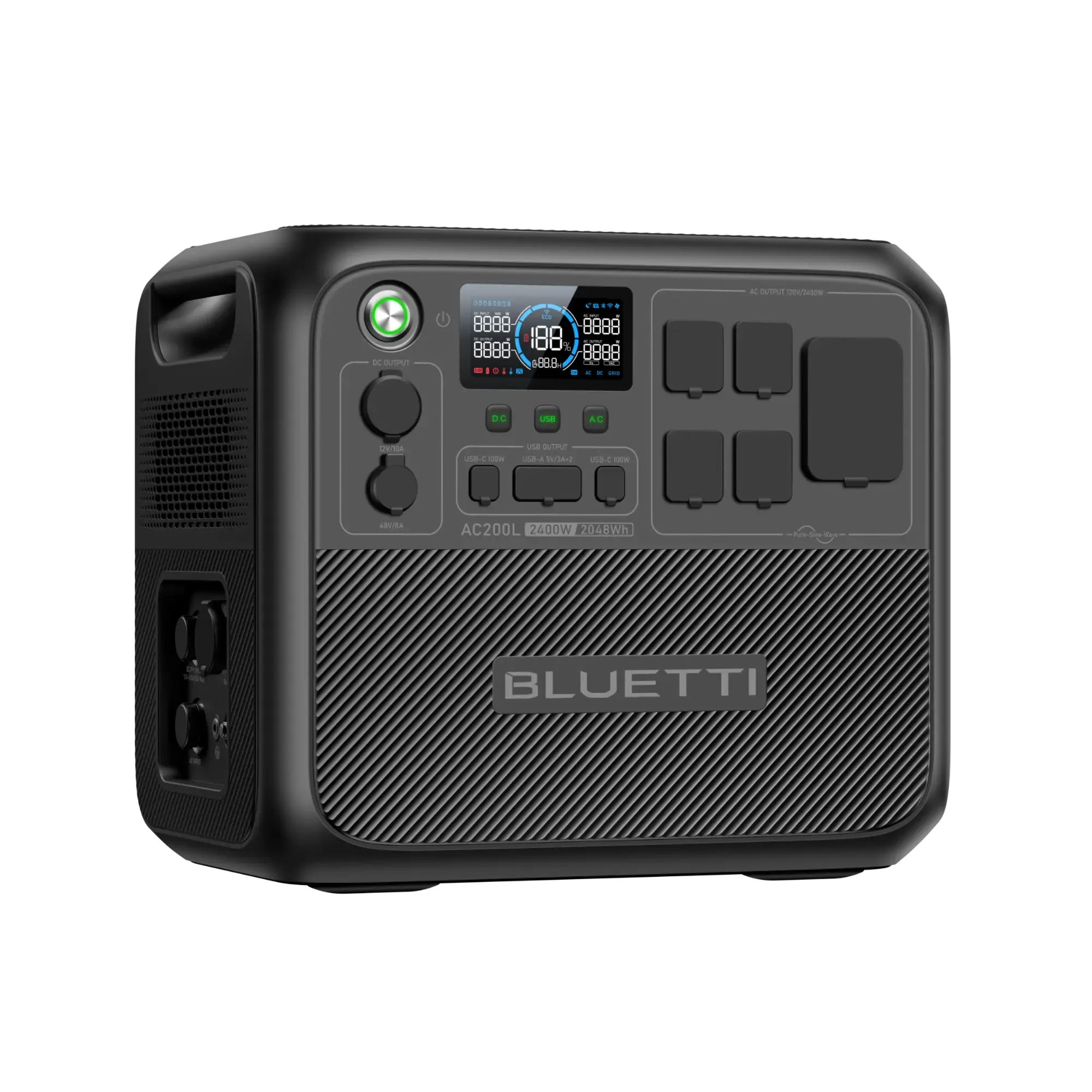

BLUETTI AC200L

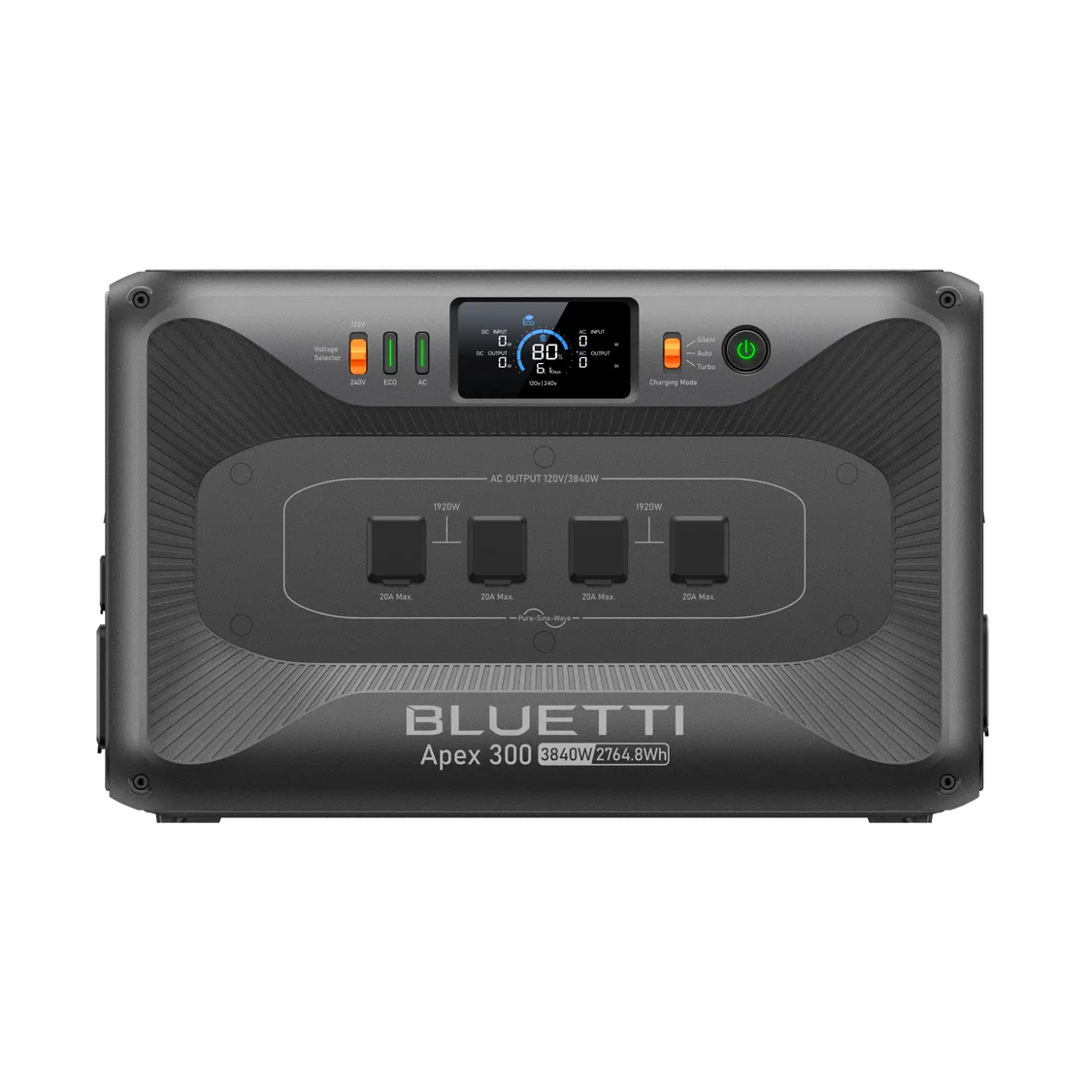

BLUETTI Elite 300

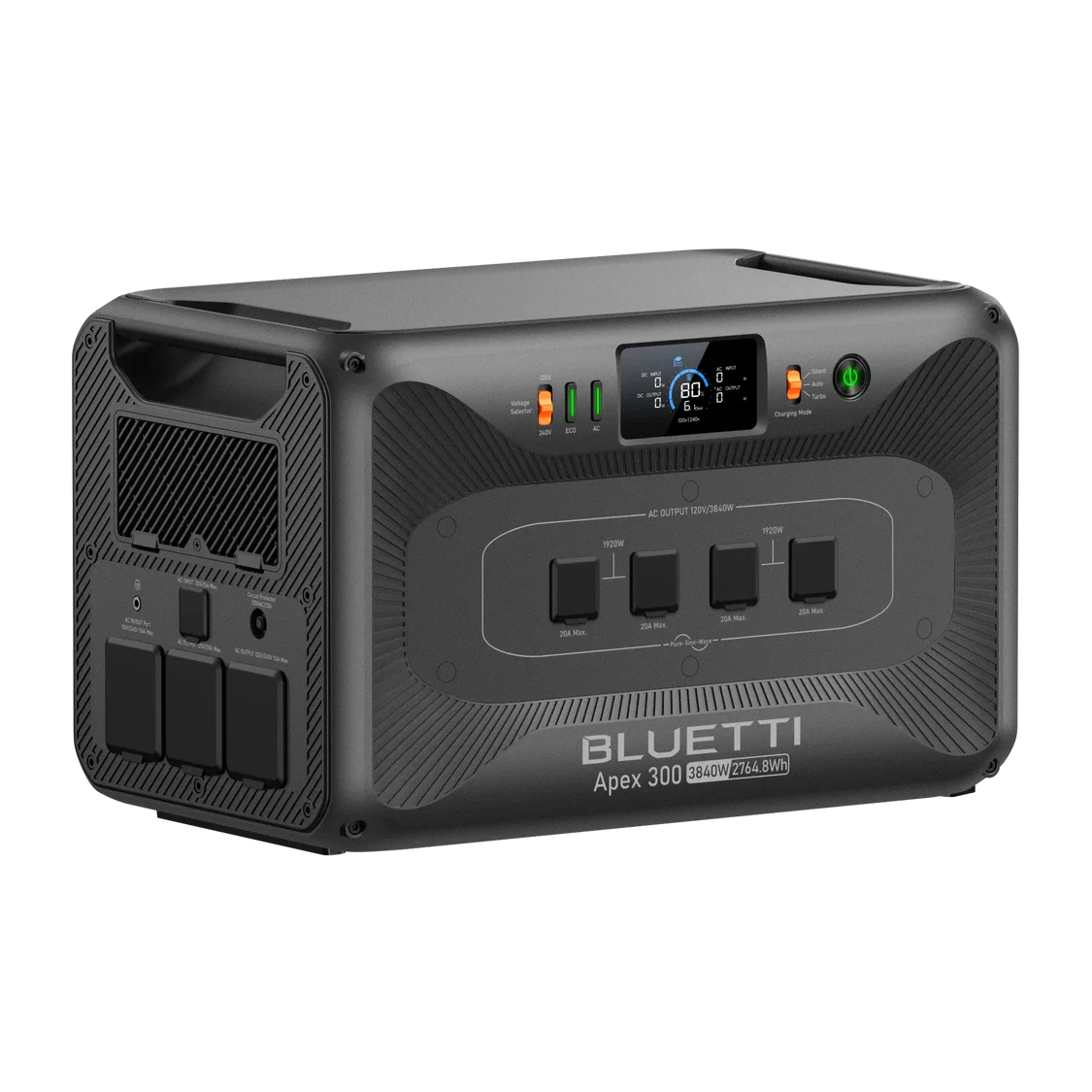

BLUETTI Apex 300
BLUETTI RV5
Links
Price$1,149 $1,399$1,699 $2,199$1,199 $2,299$3,999 $4,799
Capacity2,560Wh2,764Wh3,014Wh5,120Wh+
Extra battery6x6x--24x
AC output3,200W total
3,600W w/ battery
4,800W surge
3,840W total
7,680W surge
2,400W total
4,800W surge
5,000W total
AC portsx3 (20A each)
x1 (30A)
x4 (20A each)
x1 (30A)
x1 (120/240V, 50A)
x4 (20A each)
x1 (30A)
≤ 8 circuits
DC output12V⎓30AAdd-on 1 212V⎓30A12V⎓100A / 24V⎓60A
Solar input 160–280V⎓16A
2,000W
12-60V⎓20A
1,200W
12-60V⎓22A
1,200W
12-50V⎓50A
1,800W
Solar input 212–60V⎓25A
1,000W
12-60V⎓20A
1,200W
--12-50V⎓50A
1,800W
Alternator input1,200W1,200W1,200W600W (12V)
1,200W (24V)
AC input15A 1,800W15A 1,800W15A 1,800W42A 5,000W
USB C2xAdd-on 1 22x--
USB A2xAdd-on 1 22x--
Size (in)20.9 × 12.8 × 8.3"20.7 × 12.9 × 12.614.4 × 12 × 11.7Scalable
Size (mm)530 × 326 × 211 mm525 × 327 × 320366 × 305 × 297Scalable
ManualsUser ManualUser ManualUser ManualUser Manual

1. Requires BLUETTI Hub D1. 2. Requires BLUETTI DC Hub and Charger 2 connected via bidirectional port.

My Reviews


All Power Systems

Products are sorted by capacity.

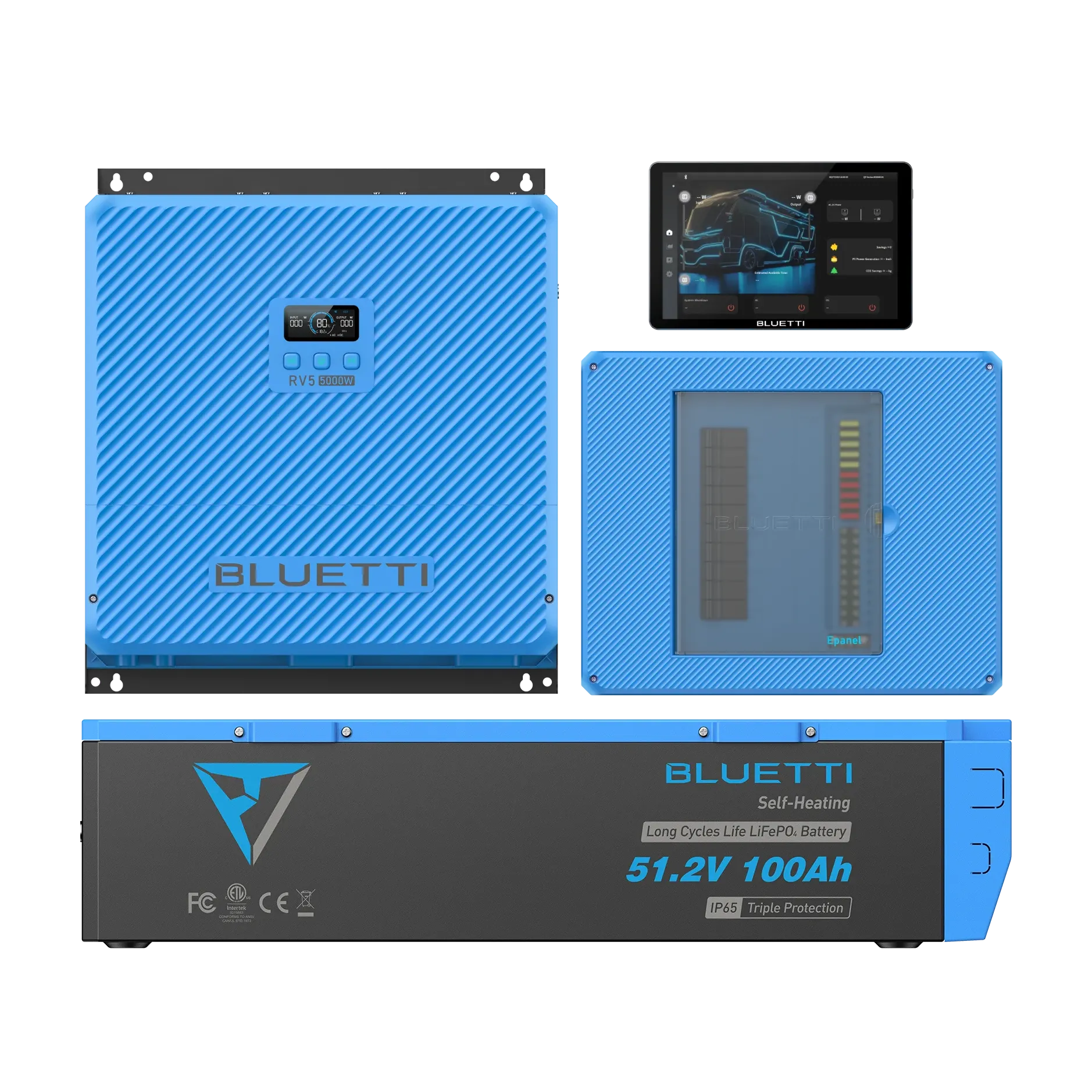

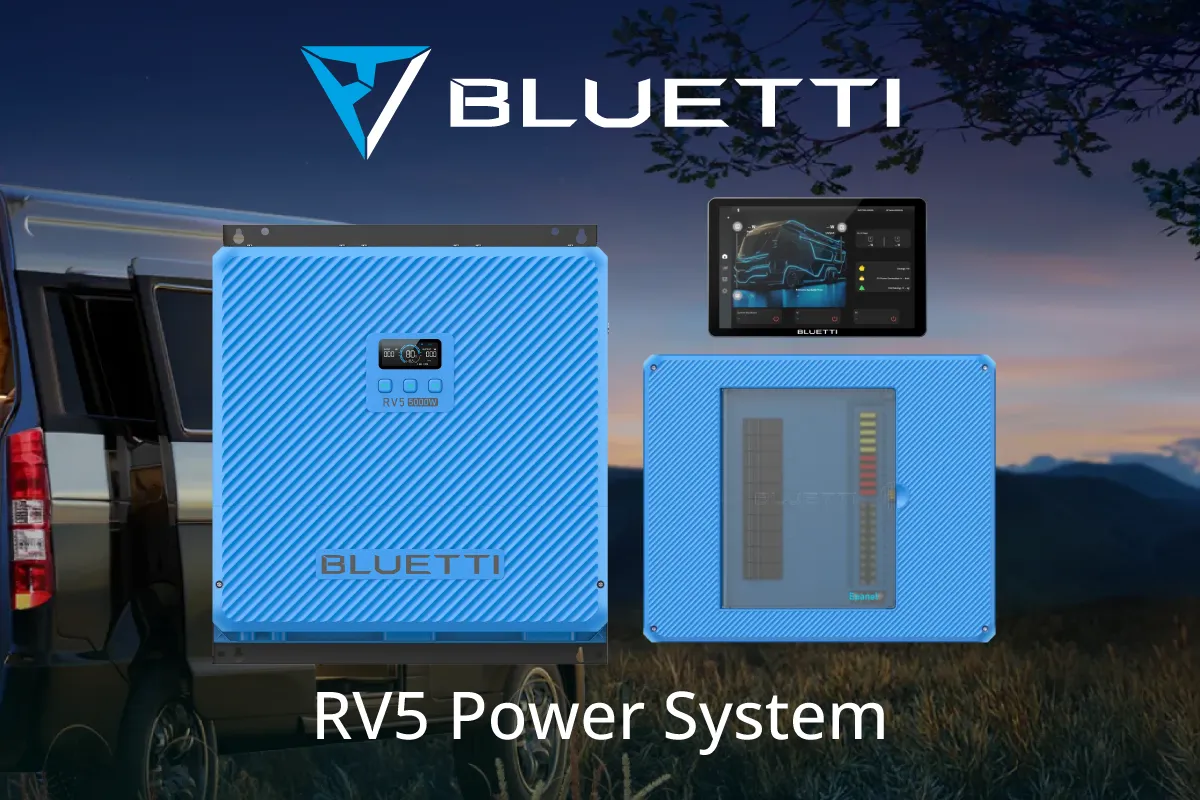

BLUETTI RV5
BLUETTI
RV5
Price
$3,699
Capacity
5,120Wh+
AC Output
5,000W
DC Output
100A
Solar
1,800W (2x)

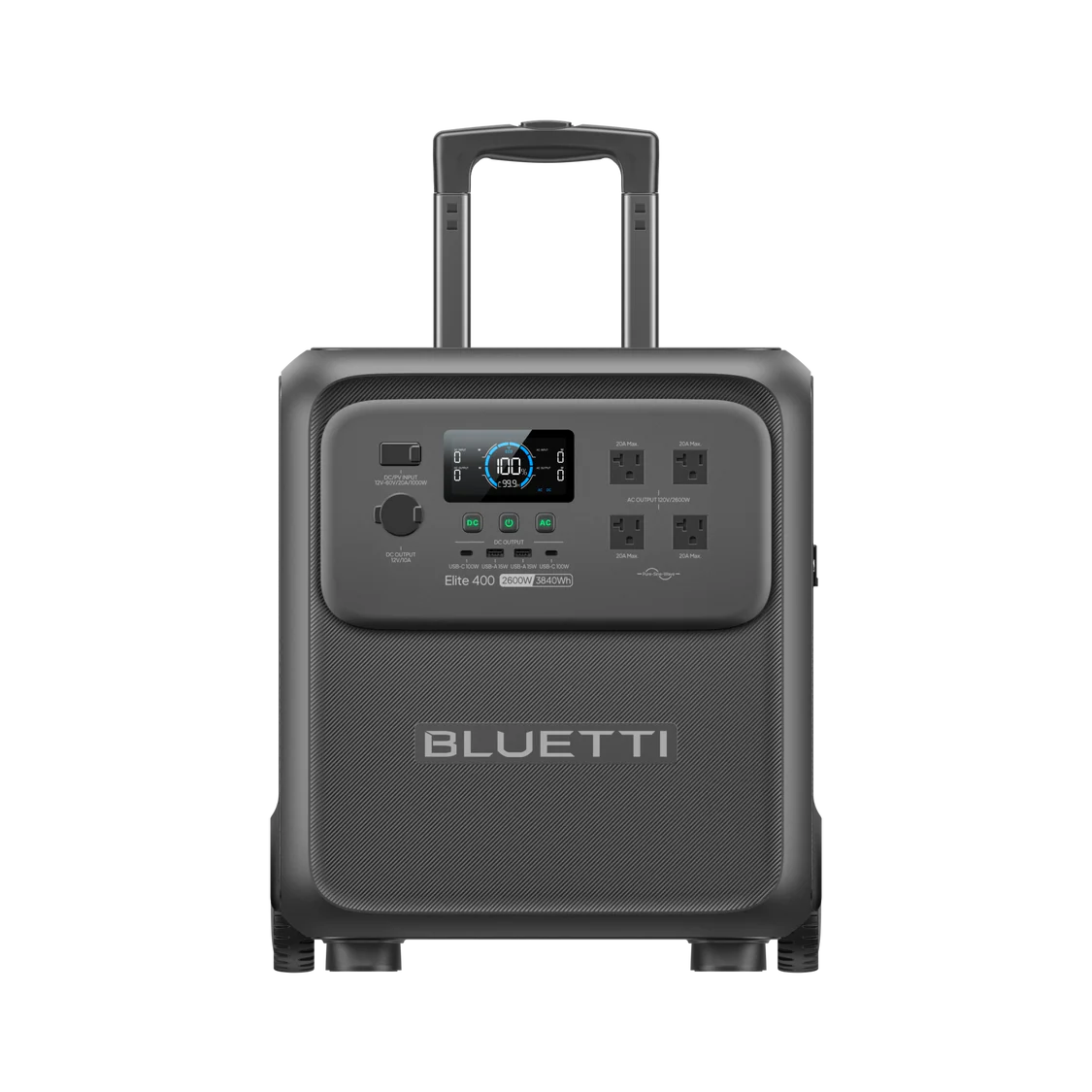

BLUETTI Elite 400
BLUETTI
Elite 400
Price
$1,399
Capacity
3,840Wh
AC Output
1,600W
DC Output
10A
Solar
1,000W
BLUETTI Apex 300
BLUETTI
Apex 300
Price
$1,499
Capacity
3,840Wh+
AC Output
3,840W
DC Output
0A, 50A 1
Solar
1,200W (2x)

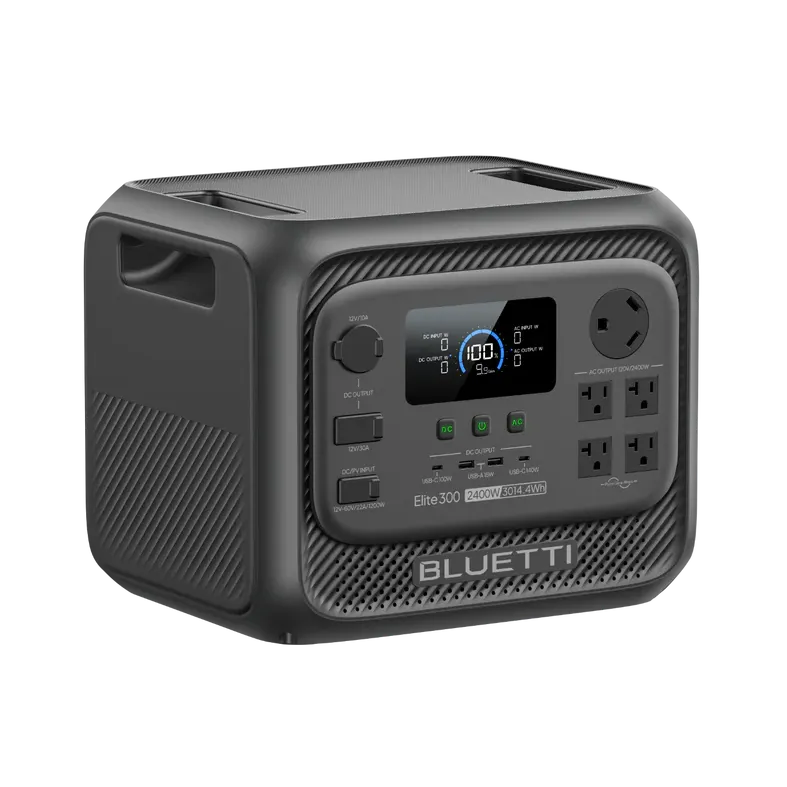

BLUETTI Elite 300
BLUETTI
Elite 300
Price
$1,199
Capacity
3,014Wh
AC Output
2,400W
DC Output
30A
Solar
1,200W
BLUETTI Apex 200
BLUETTI
Apex 200
Price
$1,149
Capacity
2,560Wh+
AC Output
3,200W
DC Output
30A, 50A 1
Solar
2,000W + 1,000W

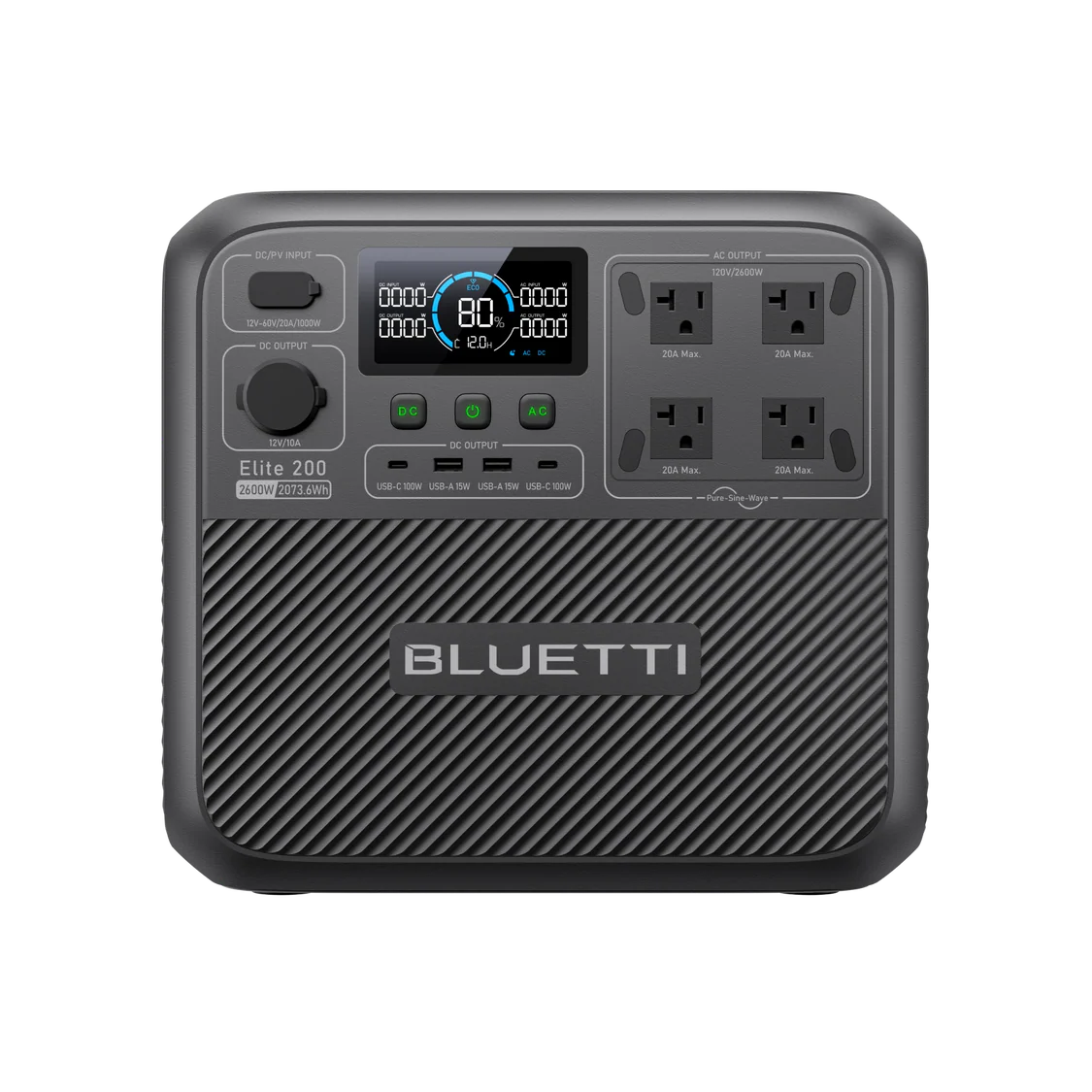

BLUETTI Elite 200 V2
BLUETTI
Elite 200 V2
Price
$899
Capacity
2,073.6Wh
AC Output
2,600W
DC Output
10A
Solar
1,000W

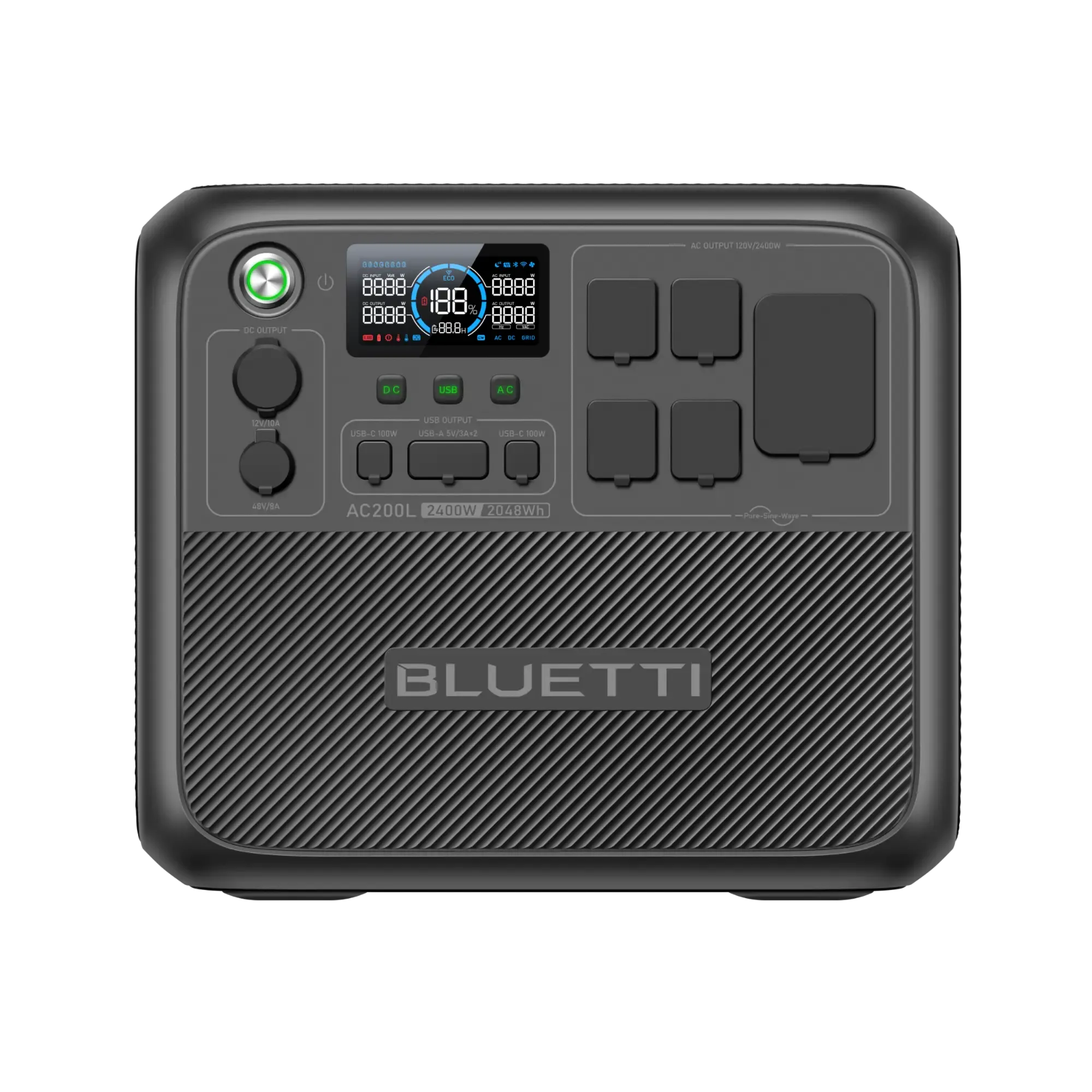

BLUETTI AC200L
BLUETTI
AC200L
Price
$899
Capacity
2,048Wh+
AC Output
2,400W
DC Output
10A, 50A 2
Solar
1,200W

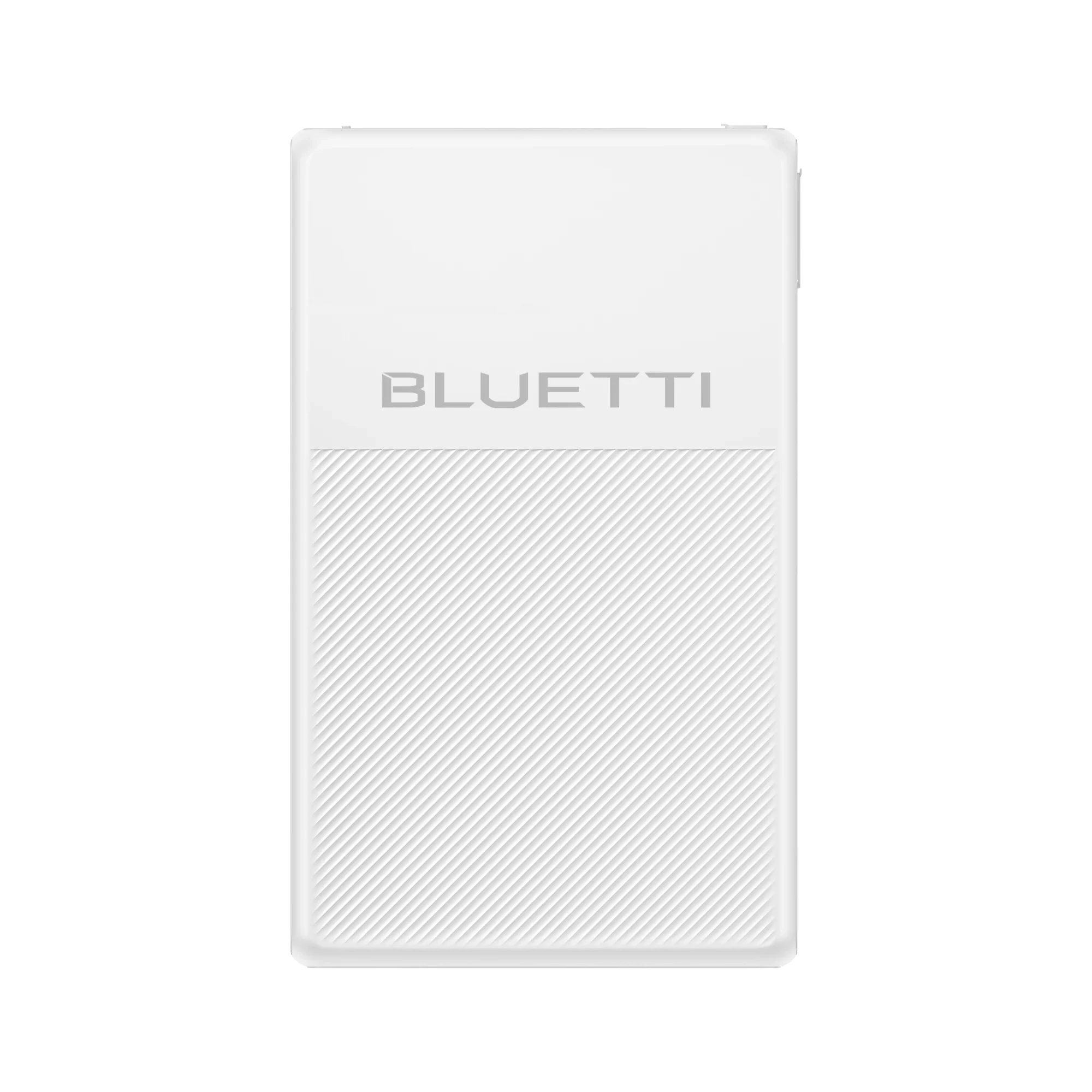

BLUETTI FridgePower
BLUETTI
FridgePower
Price
$849
Capacity
2,016Wh
AC Output
1,800W
DC Output
--
Solar
1,000W

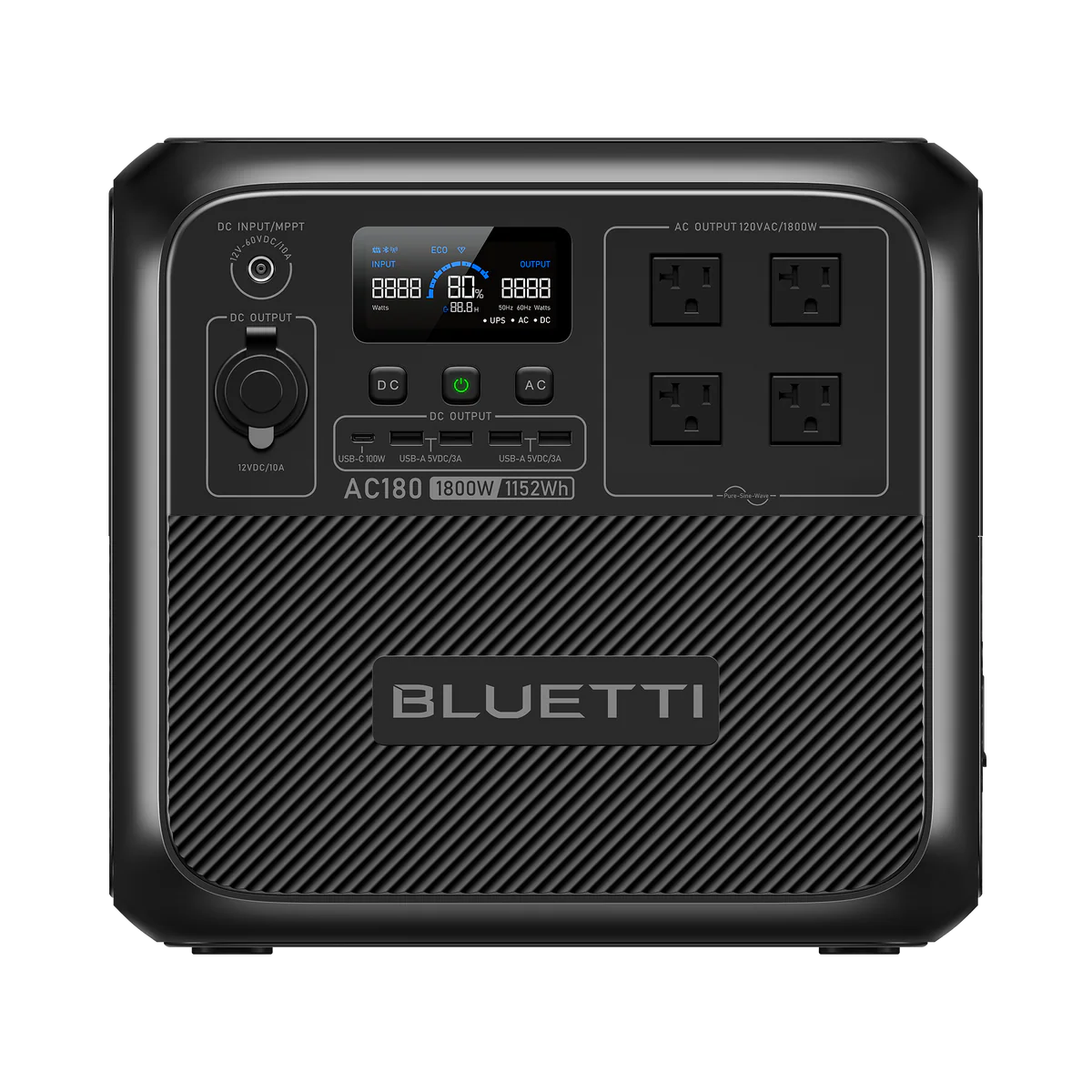

BLUETTI AC180
BLUETTI
AC180
Price
$499
Capacity
1,152Wh+
AC Output
1,800W
DC Output
10A
Solar
500W

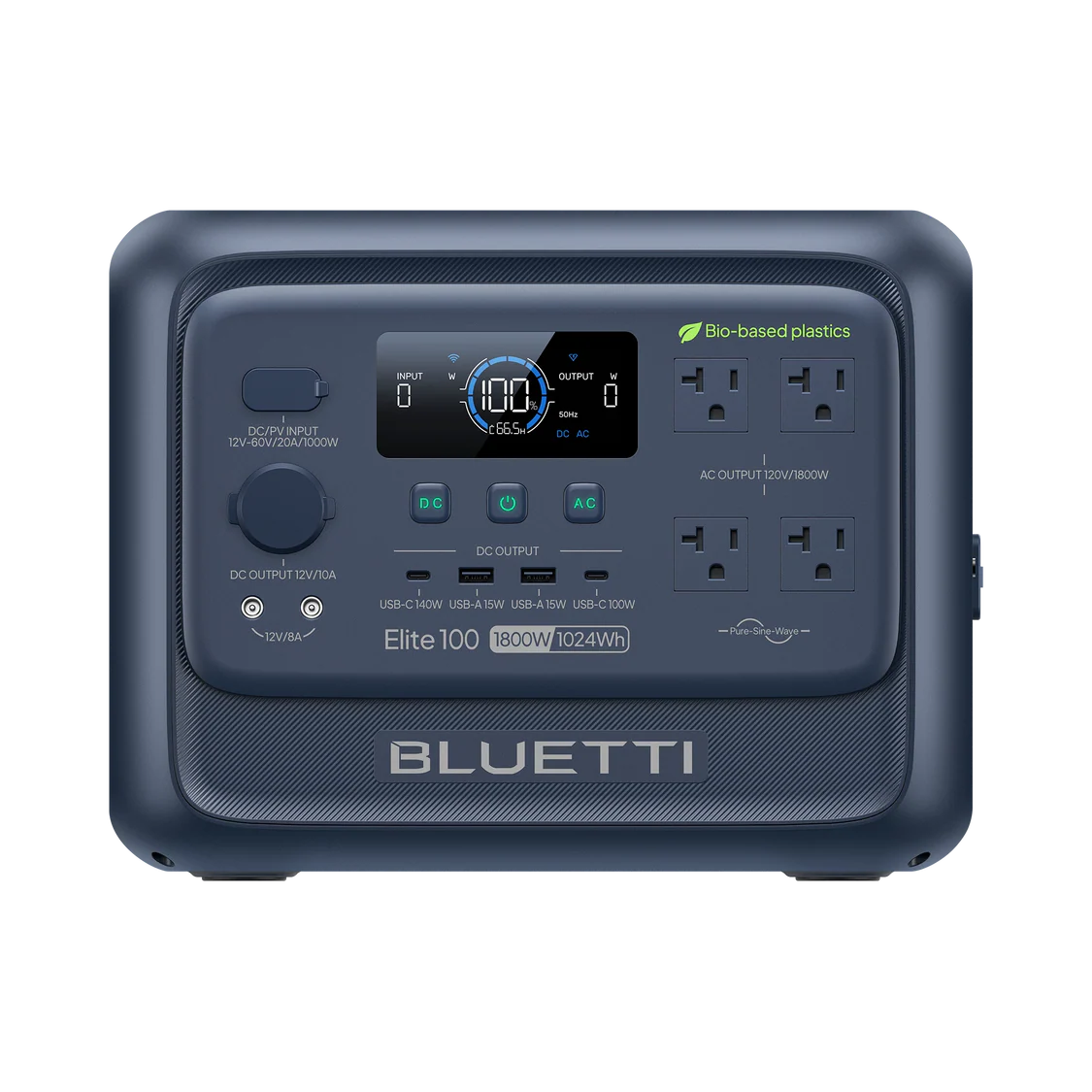

BLUETTI Elite 100 V2 Bio-based
BLUETTI
Elite 100 V2 Bio-based
Price
$499
Capacity
1,024Wh
AC Output
1,800W
DC Output
10A
Solar
1,000W

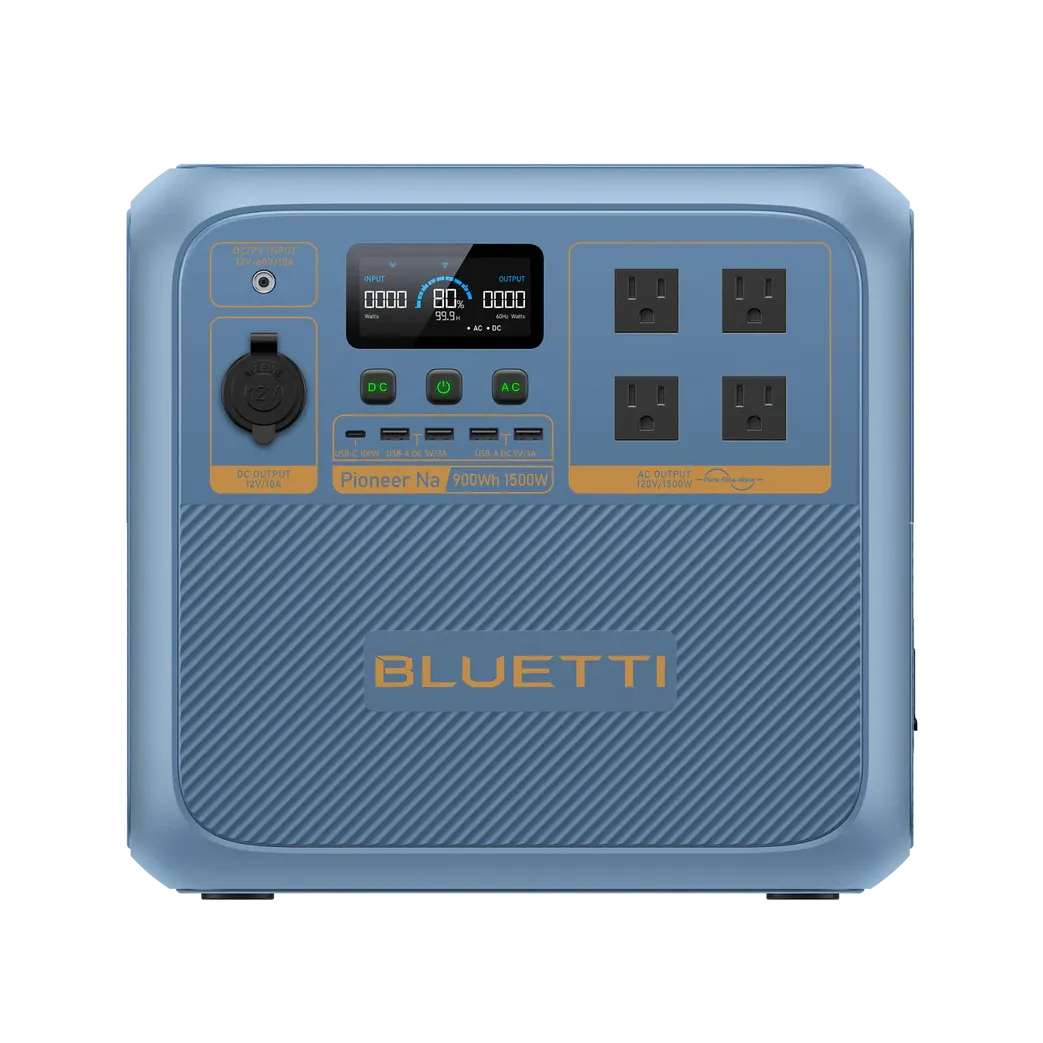

BLUETTI Pioneer Na
BLUETTI
Pioneer Na
Price
$899
Capacity
900Wh
AC Output
1,500W
DC Output
10A
Solar
500W

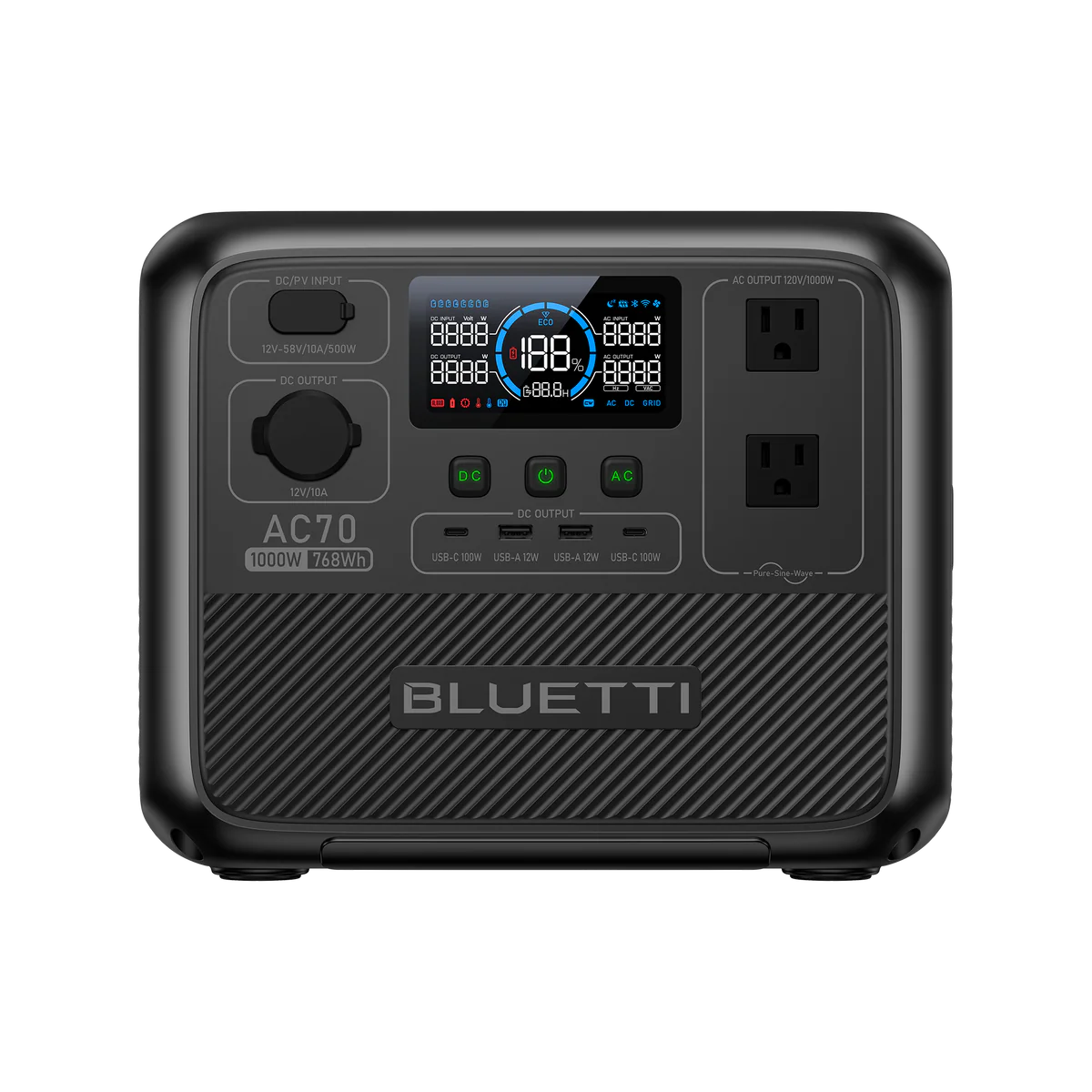

BLUETTI AC70
BLUETTI
AC70
Price
$359
Capacity
768Wh+
AC Output
1,000W
DC Output
10A
Solar
500W

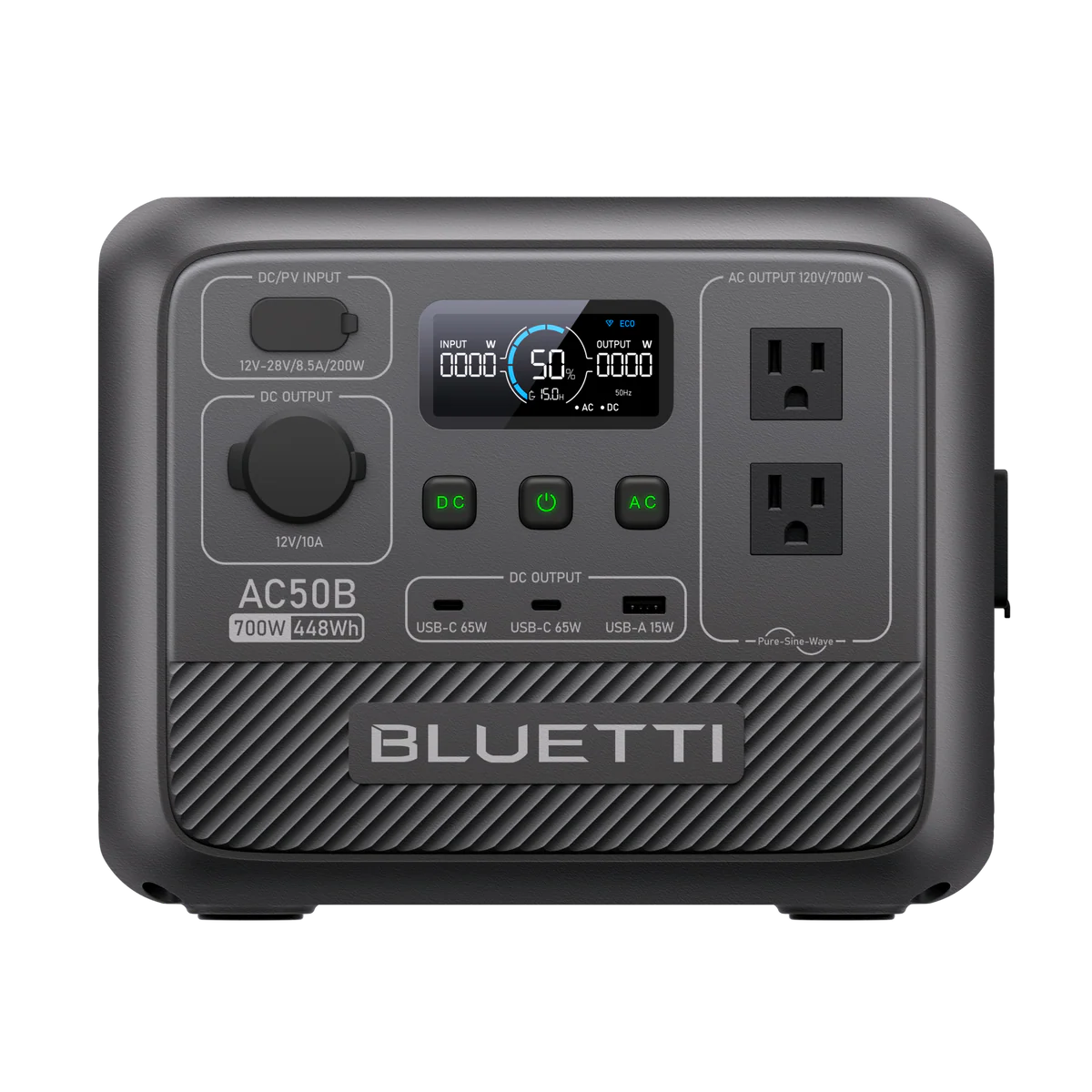

BLUETTI AC50B
BLUETTI
AC50B
Price
$279
Capacity
448Wh
AC Output
700W
DC Output
10A
Solar
200W

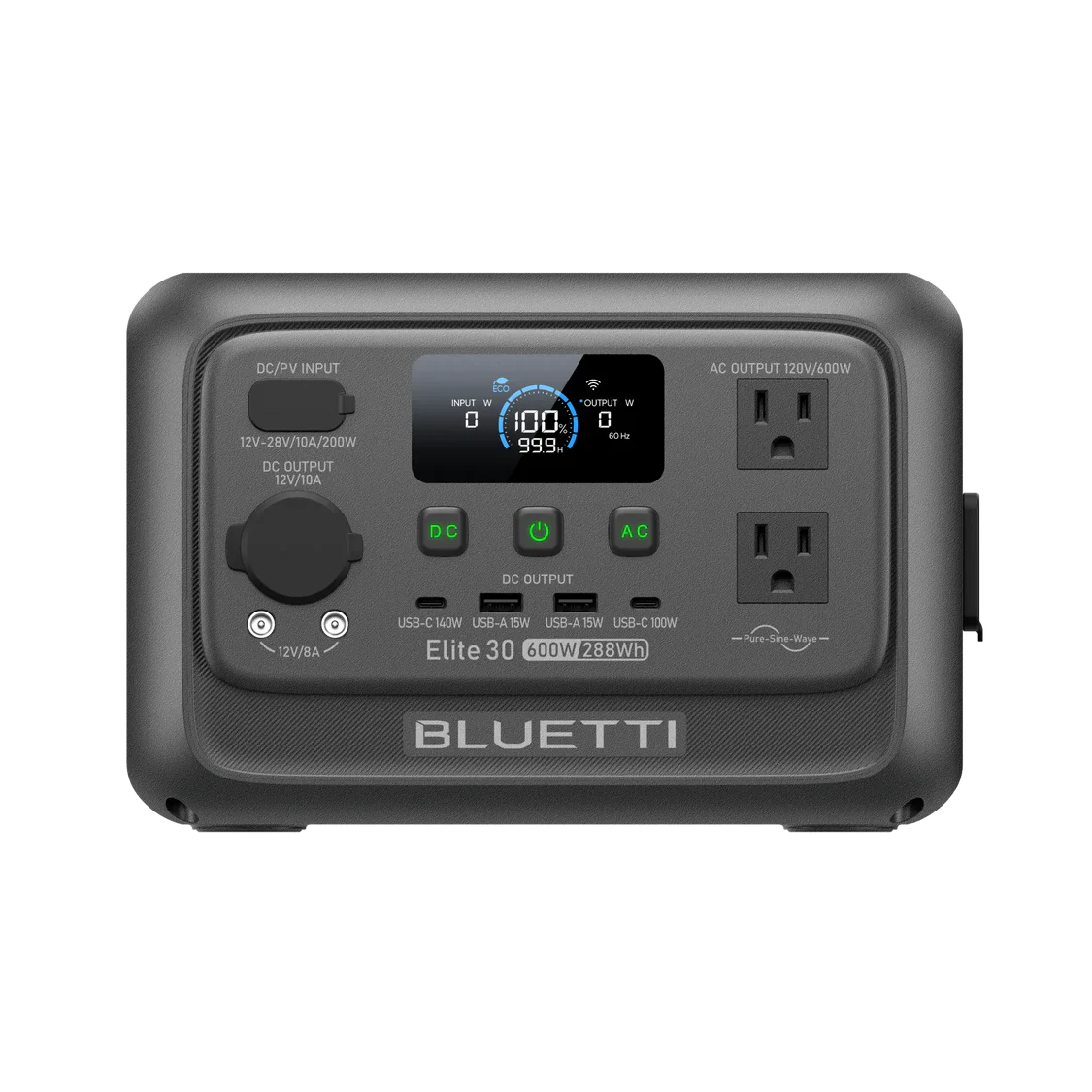

BLUETTI Elite 30 V2
BLUETTI
Elite 30 V2
Price
$239
Capacity
288Wh
AC Output
600W
DC Output
10A
Solar
200W

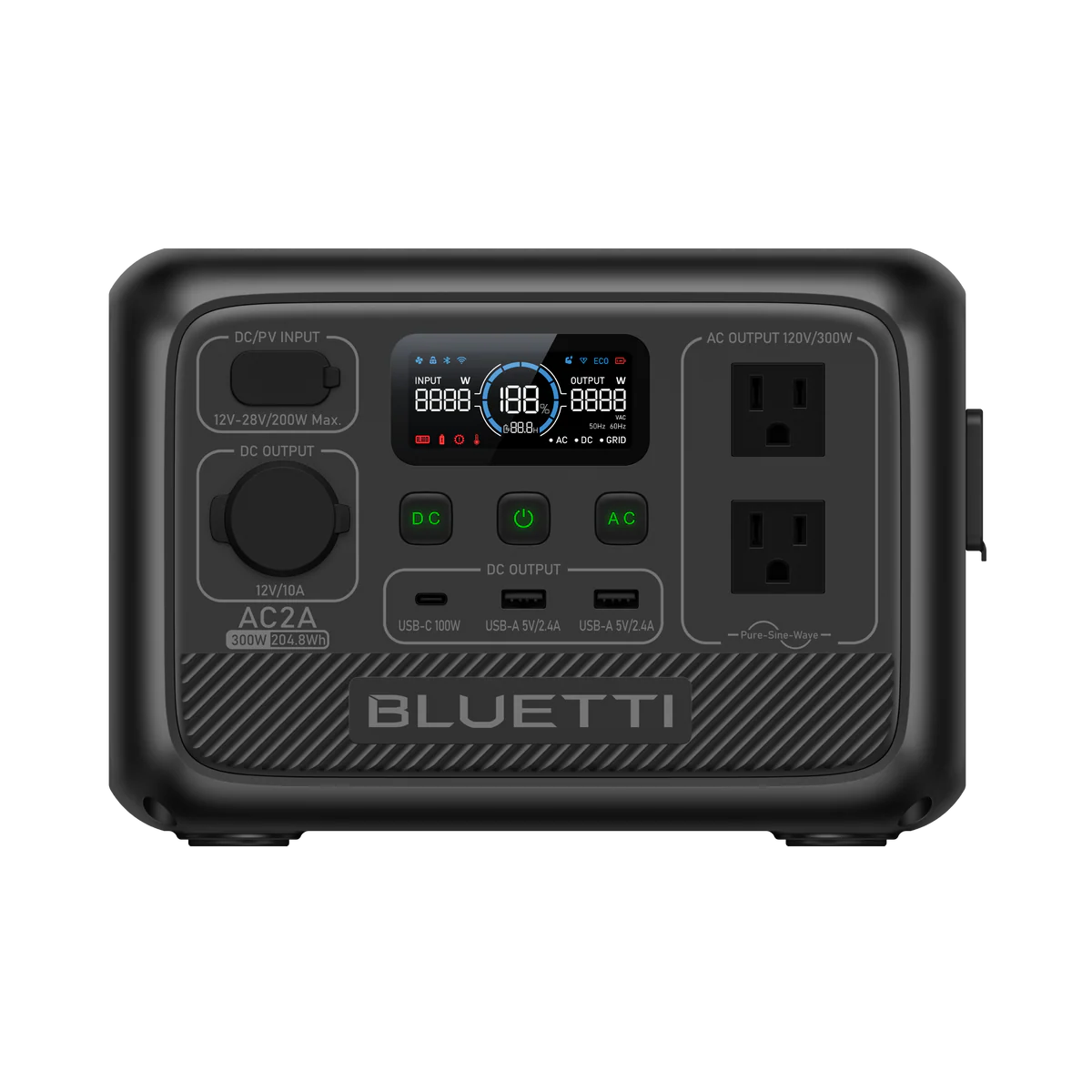

BLUETTI AC2A
BLUETTI
AC2A
Price
$149
Capacity
204Wh
AC Output
300W
DC Output
10A
Solar
100W
ProductPriceCapacityAC OutputDC OutputSolar
$3,6995,120Wh+5,000W100A1,800W (2x)
BLUETTI Elite 400
BLUETTI
Elite 400
$1,3993,840Wh1,600W10A1,000W
BLUETTI Apex 300
BLUETTI
Apex 300
$1,4993,840Wh+3,840W0A, 50A 11,200W (2x)
BLUETTI Elite 300
BLUETTI
Elite 300
$1,1993,014Wh2,400W30A1,200W
BLUETTI Apex 200
BLUETTI
Apex 200
$1,1492,560Wh+3,200W30A, 50A 12,000W
1,000W
BLUETTI Elite 200 V2
BLUETTI
Elite 200 V2
$8992,073.6Wh2,600W10A1,000W
$8992,048Wh+2,400W10A, 50A 21,200W
BLUETTI FridgePower
BLUETTI
FridgePower
$8492,016Wh1,800W--1,000W
BLUETTI AC180
BLUETTI
AC180
$4991,152Wh+1,800W10A500W
BLUETTI Elite 100 V2 Bio-based
BLUETTI
Elite 100 V2 Bio-based
$4991,024Wh1,800W10A1,000W
BLUETTI Pioneer Na
BLUETTI
Pioneer Na
$899900Wh1,500W10A500W
BLUETTI AC70
BLUETTI
AC70
$359768Wh+1,000W10A500W
BLUETTI AC50B
BLUETTI
AC50B
$279448Wh700W10A200W
BLUETTI Elite 30 V2
BLUETTI
Elite 30 V2
$239288Wh600W10A200W
BLUETTI AC2A
BLUETTI
AC2A
$149204Wh300W10A100W

1. Requires BLUETTI Hub D1 or BLUETTI Charger 2 + DC Hub. 2. Requires BLUETTI Charger 2 + DC Hub.

See how other power systems compare:

Power Systems

Power Systems

Compare Types, Brands, & Models

Alternator Chargers

Alternator charging is essential for vanlife, offering fast, reliable recharging while driving. It often outperforms solar and isn’t dependent on sunshine or good weather. BLUETTI currently offers two alternator chargers: Charger 1 and Charger 2. These units pull power from your vehicle to charge your power station, similar to a DC-DC charger.

ModelCharger 2Charger 1

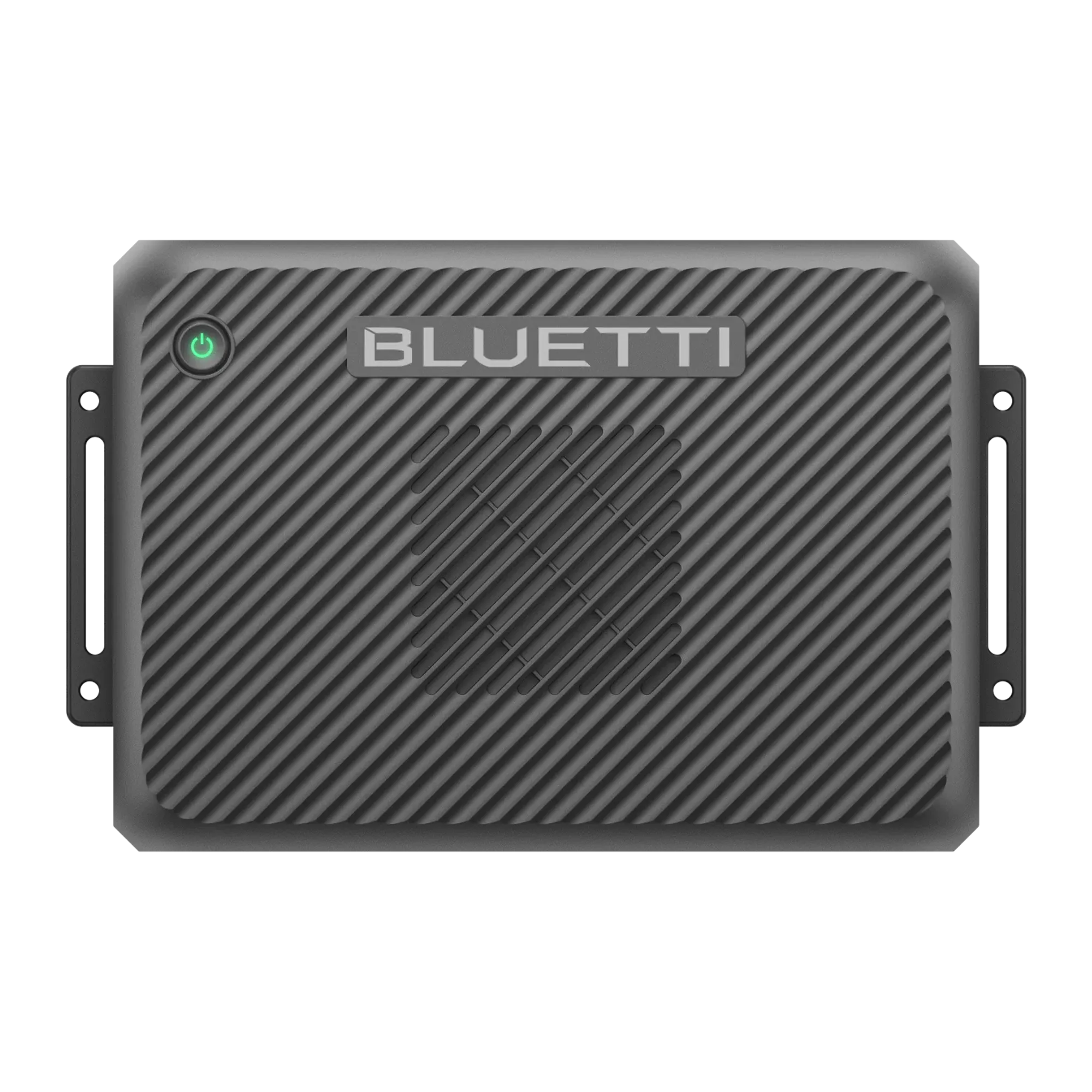

BLUETTI Charger 2

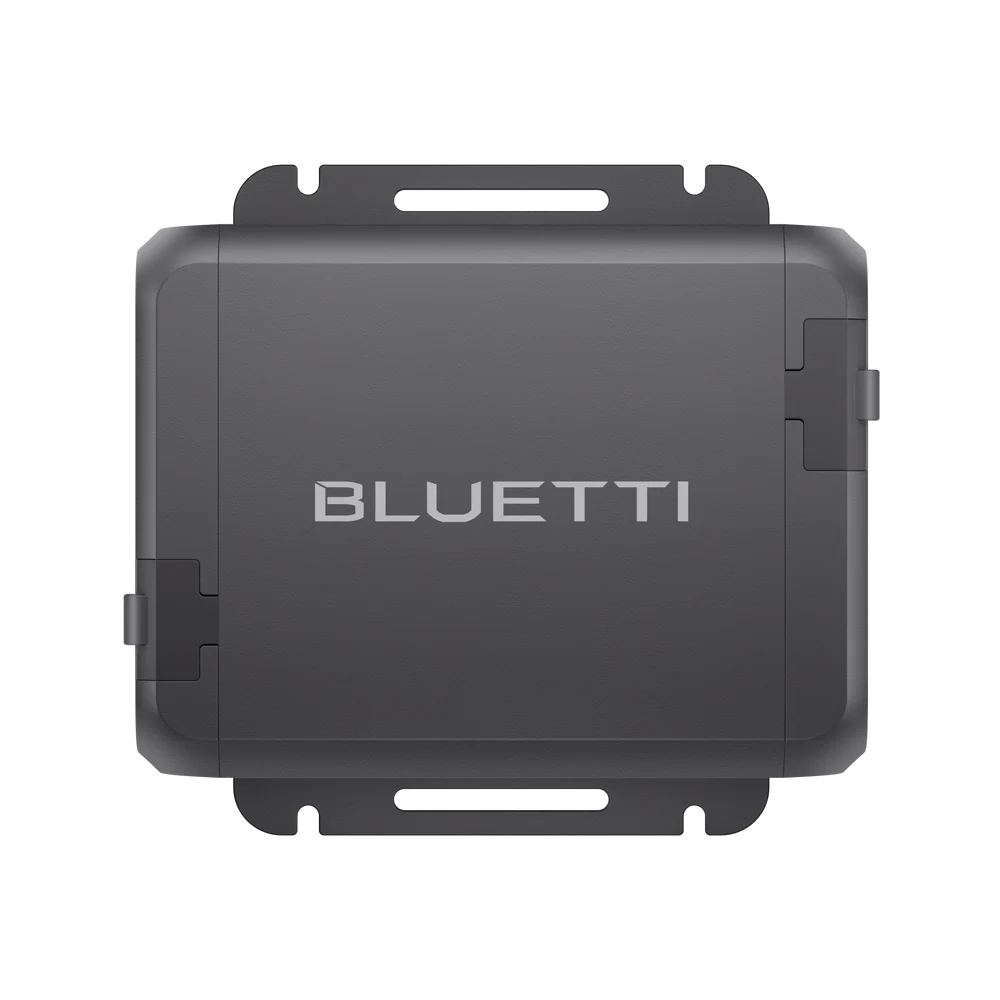

BLUETTI Charger 1
Links
Price$499 $599$249 $399
Alternator Input800W560W
Solar Input13-50V⎓20A, 600W--
Power Station Port1,200W560W
Bidirectional Port1,000W 1--
DC Hub Port700W 2--
Max Reverse Charge800W 1--
Battery Maintenance100W 1--
Signal Wire (D+)Add-on--

1. Requires compatible BLUETTI product. 2. Requires BLUETTI DC Hub. Also requires a BLUETTI device connected to the bidirectional port to be active when vehicle is off.

My Reviews

Solar Power

Solar charging offers a quiet, sustainable, and free way to extend off-grid time. However, its effectiveness depends entirely on sunlight; factors like shade, sun angle, temperature, and wiring configuration (series, parallel, or series-parallel) all significantly impact power output.

Solar Array Configuration

Solar panel setups often involve arrays of multiple panels using series, parallel, or series-parallel wiring. Series connections add voltage but can suffer significant power drops if even one panel is partially shaded. Parallel wiring adds current (amperage), allowing unshaded panels to still produce power, ideal for patchy sunlight. Series-parallel setups combine both approaches.

Solar Panel Types

BLUETTI offers portable solar panels, but you may prefer rigid panels for a permanent roof mount.

While BLUETTI provides various solar panel options and bundles, prioritize panels that physically fit your vehicle; using other reputable brands is okay. I personally use Newpowa panels as they fit my rack setup best.

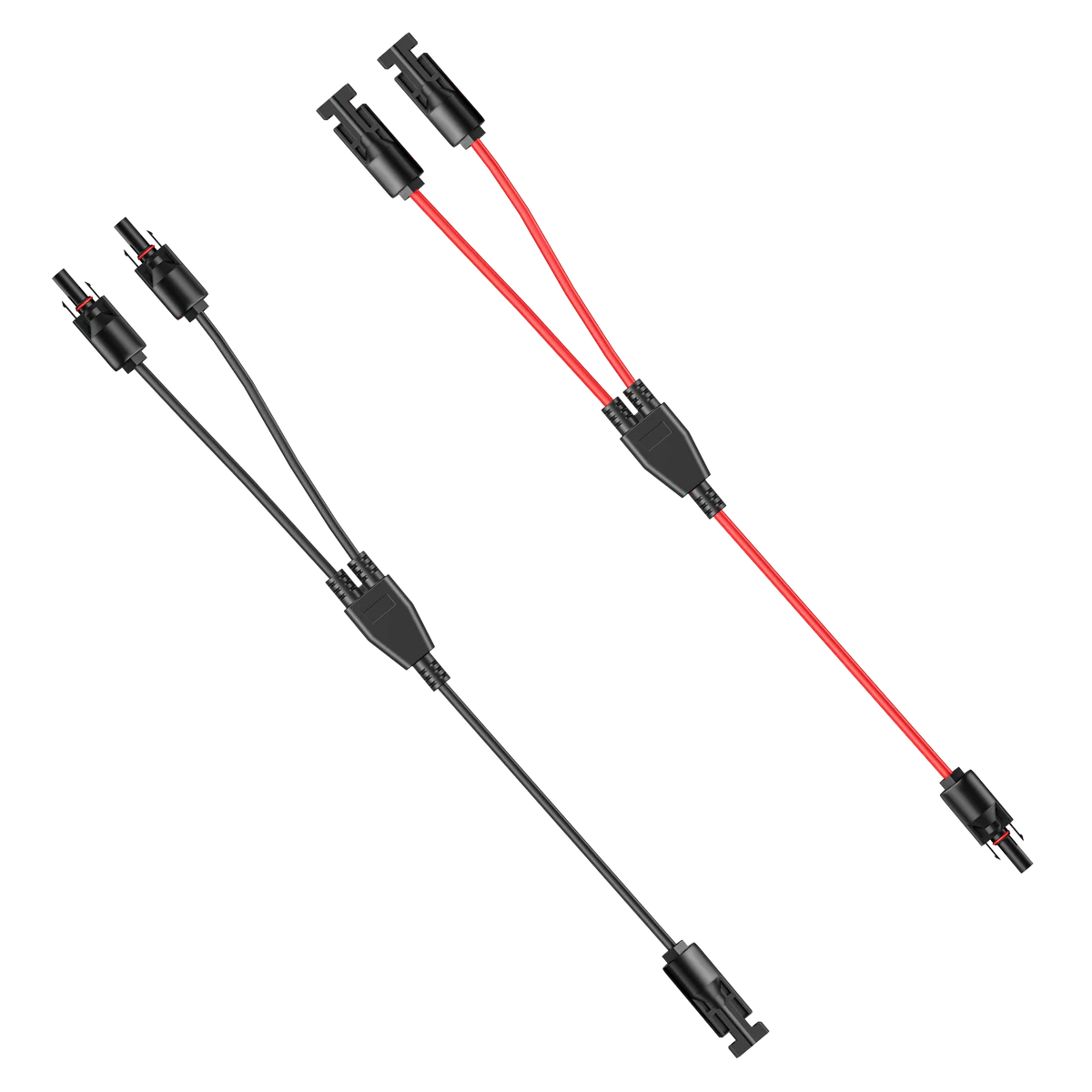

Accessories for Solar Panels

Shore Power

Shore power charging allows you to replenish your BLUETTI power station by plugging into a standard electrical outlet, often found at campgrounds or homes, using the power station's normal AC charging cable. For easier charging, you can install a weather-resistant AC port on your vehicle, such as the Noco GCP1.

Questions or feedback? Connect on Facebook, YouTube, Instagram, or email. If you found this post helpful, please share it with others!

Disclaimer: I'm a DIY enthusiast, not a licensed electrician. Content is informational. I accept no liability for mistakes. More info
